CVE-2021-45232 Apache APISIX Dashboard RCE 分析

作者: print("") 分类: 信息安全发布时间: 2021-12-29 20:59 阅读次数: 12,658 次

一、环境搭建

https://github.com/apache/apisix-docker

git clone https://github.com/apache/apisix-docker

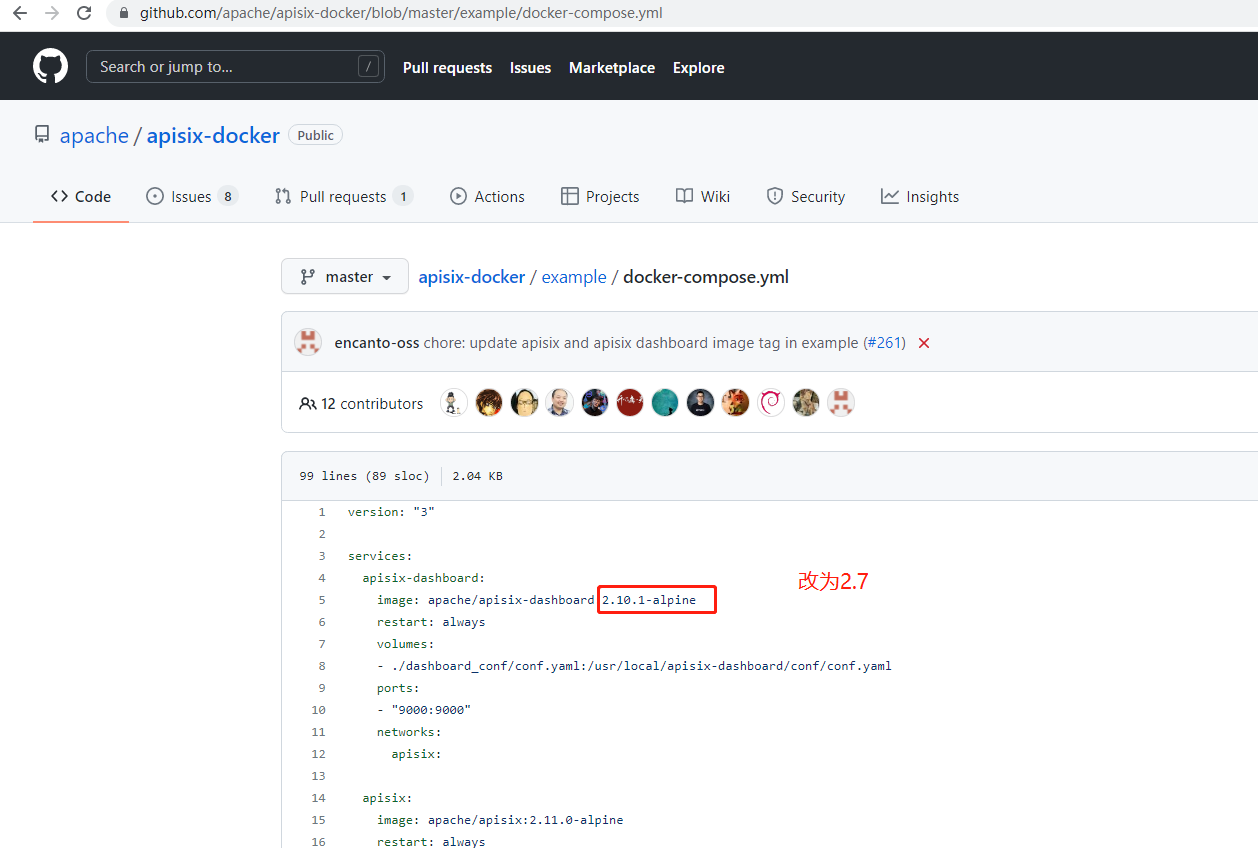

修改为2.7 后

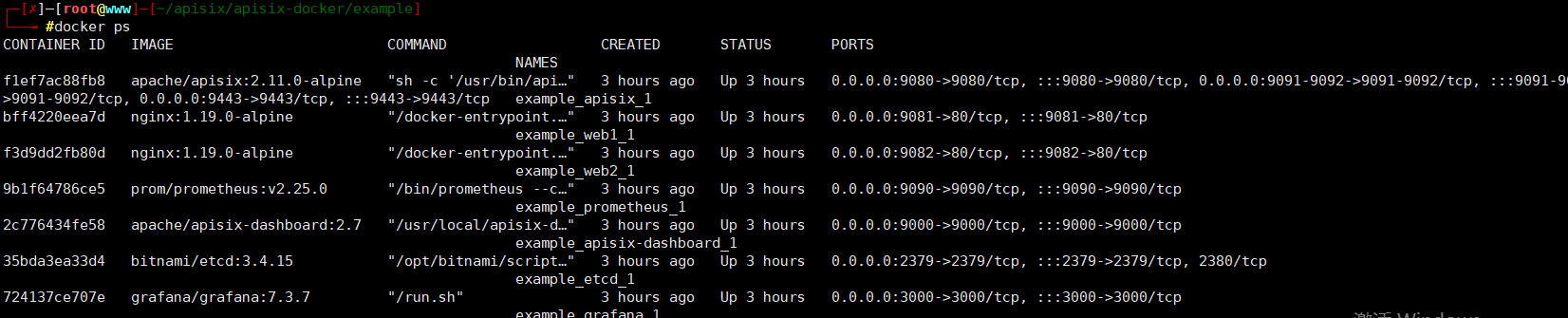

docker-compose up -d

二、代码分析

Apache APISIX Dashboard github 地址

https://github.com/apache/apisix-dashboard

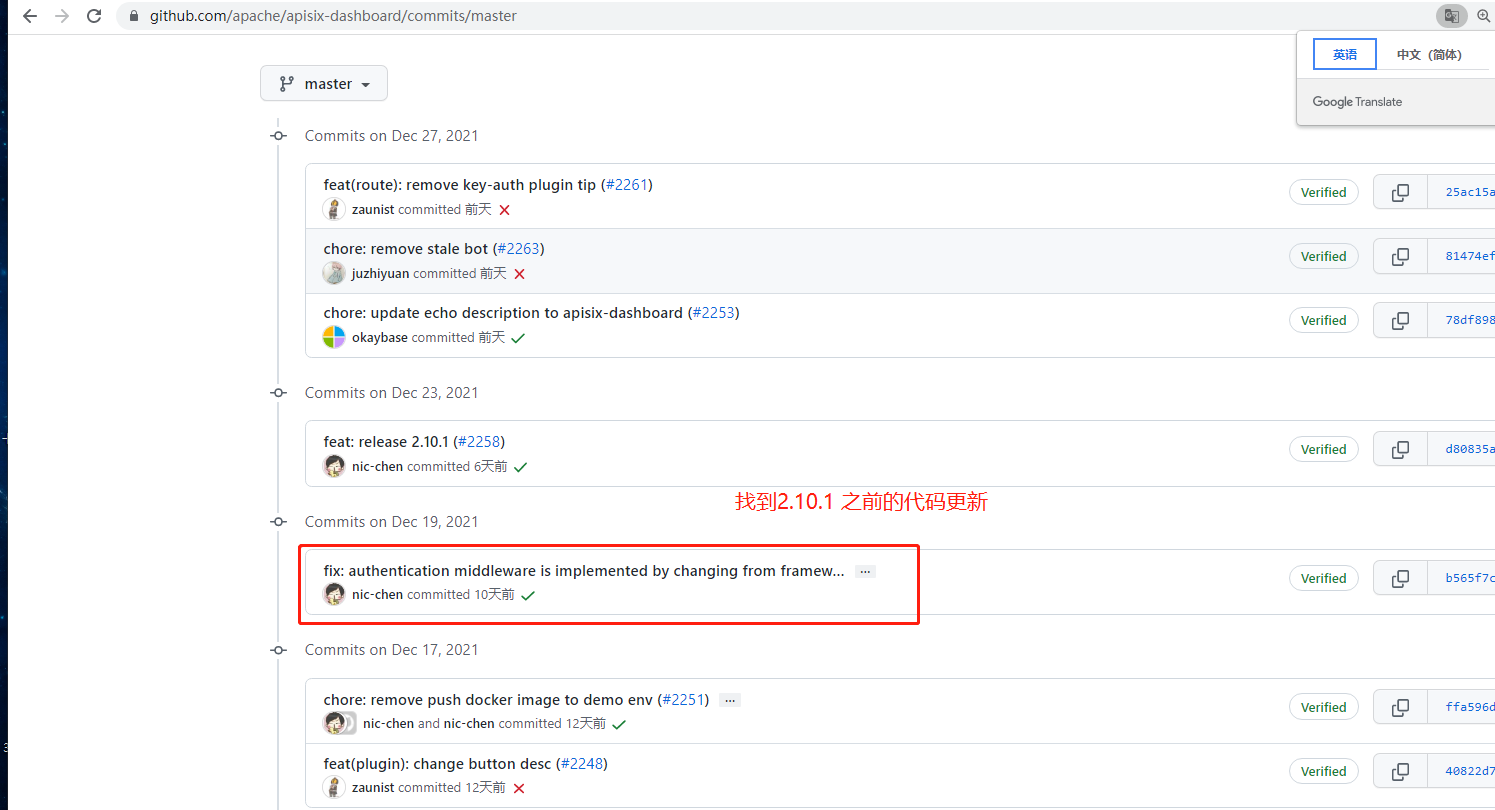

找到commits 进行查看

https://github.com/apache/apisix-dashboard/commits/master

https://github.com/apache/apisix-dashboard/commit/b565f7cd090e9ee2043fbb726fbaae01737f83cd#diff-a16bc2c469646367bf6d9f635ee85a8e13109732bdb0caba8cec71f015bc0c1c

更新了如下代码

具体参考：

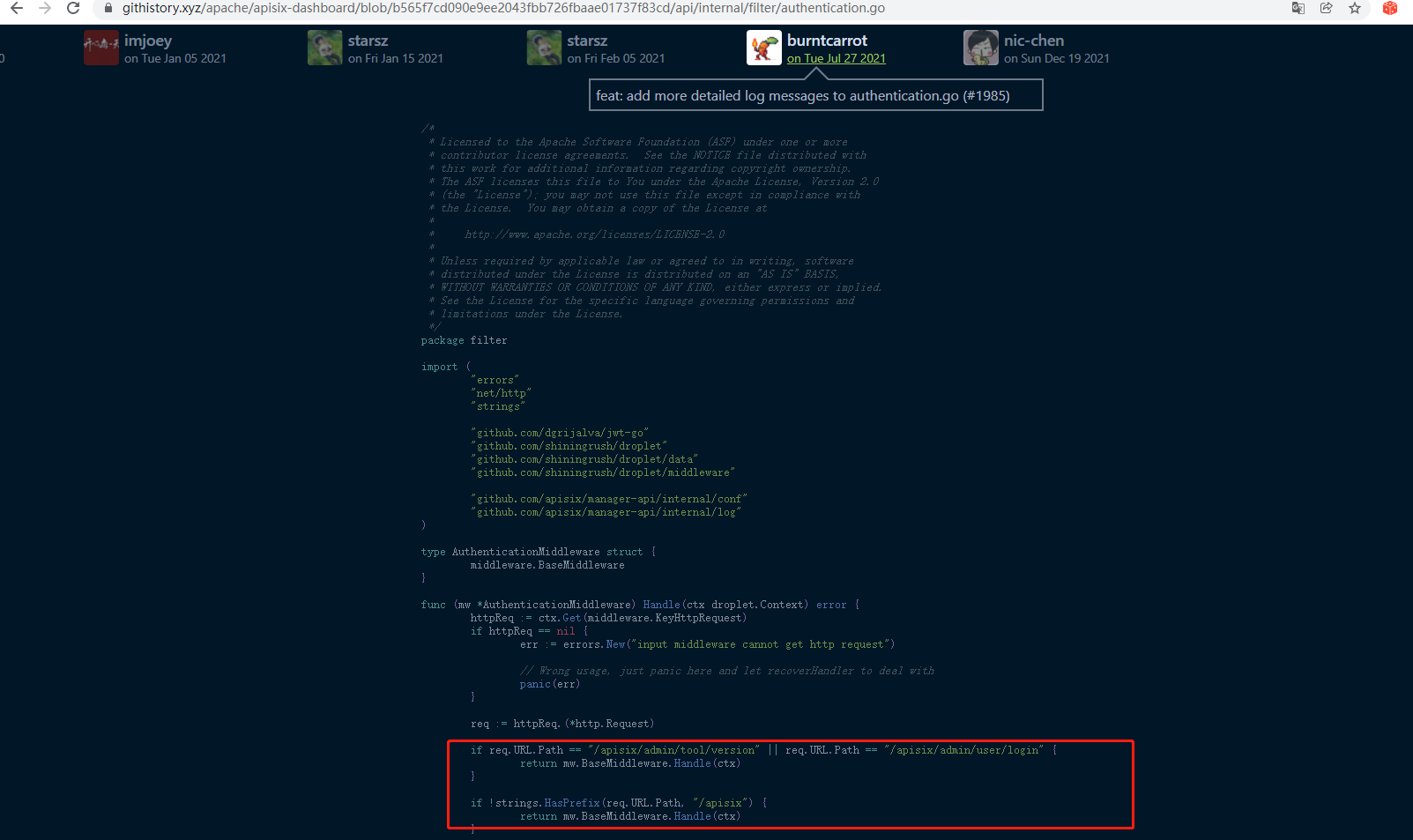

https://githistory.xyz/apache/apisix-dashboard/blob/b565f7cd090e9ee2043fbb726fbaae01737f83cd/api/internal/filter/authentication.go

以`/apisix`开头的URL，除了`/apisix/admin/tool/version`和`/apisix/admin/user/login`以外均需要认证，通过判断HTTP Header中的`Authorization`来完成鉴权处理

打开路由表：

func SetUpRouter() *gin.Engine {
	if conf.ENV == conf.EnvLOCAL || conf.ENV == conf.EnvDEV {
		gin.SetMode(gin.DebugMode)
	} else {
		gin.SetMode(gin.ReleaseMode)
	}
	r := gin.New()
	logger := log.GetLogger(log.AccessLog)
	r.Use(filter.CORS(), filter.RequestId(), filter.IPFilter(), filter.RequestLogHandler(logger), filter.SchemaCheck(), filter.RecoverHandler())
	r.Use(gzip.Gzip(gzip.DefaultCompression))
	r.Use(static.Serve("/", static.LocalFile(filepath.Join(conf.WorkDir, conf.WebDir), false)))
	r.NoRoute(func(c *gin.Context) {
		c.File(fmt.Sprintf("%s/index.html", filepath.Join(conf.WorkDir, conf.WebDir)))
	})

	factories := []handler.RegisterFactory{
		route.NewHandler,
		ssl.NewHandler,
		consumer.NewHandler,
		upstream.NewHandler,
		service.NewHandler,
		schema.NewHandler,
		schema.NewSchemaHandler,
		healthz.NewHandler,
		authentication.NewHandler,
		global_rule.NewHandler,
		server_info.NewHandler,
		label.NewHandler,
		data_loader.NewHandler,
		data_loader.NewImportHandler,
		tool.NewHandler,
		plugin_config.NewHandler,
		migrate.NewHandler,
		proto.NewHandler,
		stream_route.NewHandler,
	}

注册了如上的这些路由

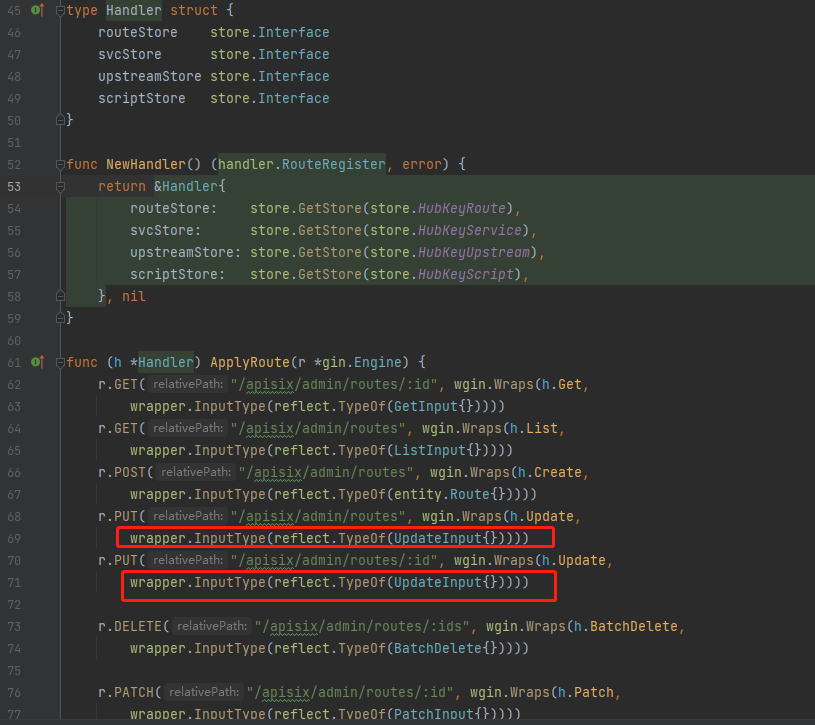

授权中间件是在droplet中注册的而导入导出的路由没有用wgin.Wraps()函数转换为droplet的路由函数

未授权的没用wgin.Wraps()进行二次包装转换

通过全局搜索r.GET

发现两个未授权的接口

	r.GET("/apisix/admin/migrate/export", h.ExportConfig)
	r.POST("/apisix/admin/migrate/import", h.ImportConfig)

首先访问一下。这两个接口

首先看看代码导出

func (h *Handler) ExportConfig(c *gin.Context) {
	data, err := migrate.Export(c)
	if err != nil {
		log.Errorf("Export: %s", err)
		c.JSON(http.StatusInternalServerError, err)
		return
	}
	// To check file integrity
	// Add 4 byte(uint32) checksum at the end of file.
	checksumUint32 := crc32.ChecksumIEEE(data)
	checksum := make([]byte, checksumLength)
	binary.BigEndian.PutUint32(checksum, checksumUint32)
	fileBytes := append(data, checksum...)

	c.Writer.WriteHeader(http.StatusOK)
	c.Header("Content-Disposition", "attachment; filename="+exportFileName)
	c.Header("Content-Type", "application/octet-stream")
	c.Header("Content-Transfer-Encoding", "binary")
	_, err = c.Writer.Write([]byte(fileBytes))
	if err != nil {
		log.Errorf("Write: %s", err)
	}
}

func Export(ctx context.Context) ([]byte, error) {
	exportData := newDataSet()
	store.RangeStore(func(key store.HubKey, s *store.GenericStore) bool {
		s.Range(ctx, func(_ string, obj interface{}) bool {
			err := exportData.Add(obj)
			if err != nil {
				log.Errorf("Add obj to export list failed:%s", err)
				return true
			}
			return true
		})
		return true
	})

	data, err := json.Marshal(exportData)
	if err != nil {
		return nil, err
	}

	return data, nil
}

最终返回的是所有信息的结构体

func newDataSet() *DataSet {
	return &DataSet{
		Consumers:     make([]*entity.Consumer, 0),
		Routes:        make([]*entity.Route, 0),
		Services:      make([]*entity.Service, 0),
		SSLs:          make([]*entity.SSL, 0),
		Upstreams:     make([]*entity.Upstream, 0),
		Scripts:       make([]*entity.Script, 0),
		GlobalPlugins: make([]*entity.GlobalPlugins, 0),
		PluginConfigs: make([]*entity.PluginConfig, 0),
	}
}

再看看导入：

func (h *Handler) ImportConfig(c *gin.Context) {
	paraMode := c.PostForm("mode")
	mode := migrate.ModeReturn
	if m, ok := modeMap[paraMode]; ok {
		mode = m
	}
	file, _, err := c.Request.FormFile("file")
	if err != nil {
		c.JSON(http.StatusInternalServerError, err)
		return
	}
	content, err := ioutil.ReadAll(file)
	if err != nil {
		c.JSON(http.StatusInternalServerError, err)
		return
	}
	// checksum uint32,4 bytes
	importData := content[:len(content)-4]
	checksum := binary.BigEndian.Uint32(content[len(content)-4:])
	if checksum != crc32.ChecksumIEEE(importData) {
		c.JSON(http.StatusOK, &data.BaseError{
			Code:    consts.ErrBadRequest,
			Message: "Checksum check failure,maybe file broken",
		})
		return
	}
	conflictData, err := migrate.Import(c, importData, mode)
	if err != nil {
		if err == migrate.ErrConflict {
			c.JSON(http.StatusOK, &data.BaseError{
				Code:    consts.ErrBadRequest,
				Message: "Config conflict",
				Data:    ImportOutput{ConflictItems: conflictData},
			})
		} else {
			log.Errorf("Import failed: %s", err)
			c.JSON(http.StatusOK, &data.BaseError{
				Code:    consts.ErrBadRequest,
				Message: err.Error(),
				Data:    ImportOutput{ConflictItems: conflictData},
			})
		}
		return
	}
	c.JSON(http.StatusOK, &data.Response{
		Data: ImportOutput{ConflictItems: conflictData},
	})
}

先确定一下mode的模式。这里是分三种模式的

var modeMap = map[string]migrate.ConflictMode{
	"return":    migrate.ModeReturn, // 返回？？
	"overwrite": migrate.ModeOverwrite,  //覆盖
	"skip":      migrate.ModeSkip, //跳过
}

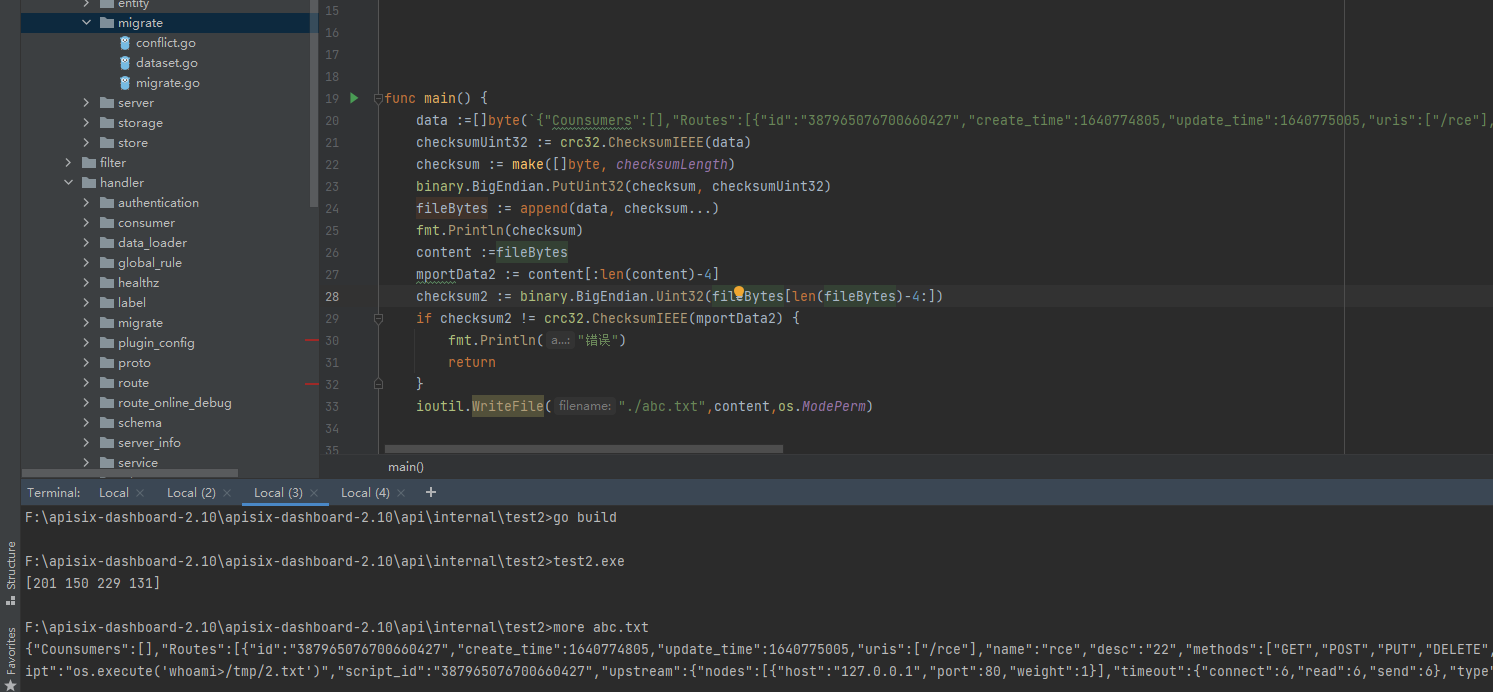

后是取最后的4位看看是和前面的计算出来的值是否相等。如果相等就根据模式的不同的对上面的那个全局的一个配置结构体进行修改

func Import(ctx context.Context, data []byte, mode ConflictMode) (*DataSet, error) {
	importData := newDataSet()
	err := json.Unmarshal(data, &importData)
	if err != nil {
		return nil, err
	}
	conflict, conflictData := isConflicted(ctx, importData)
	if conflict && mode == ModeReturn {
		return conflictData, ErrConflict
	}
	store.RangeStore(func(key store.HubKey, s *store.GenericStore) bool {
		importData.rangeData(key, func(i int, obj interface{}) bool {
			_, e := s.CreateCheck(obj)
			if e != nil {
				switch mode {
				case ModeSkip:
					return true
				case ModeOverwrite:
					_, e := s.Update(ctx, obj, true)
					if e != nil {
						err = e
						return false
					}
				}
			} else {
				_, e := s.Create(ctx, obj)
				if err != nil {
					err = e
					return false
				}
			}
			return true
		})
		return true
	})
	return nil, err
}

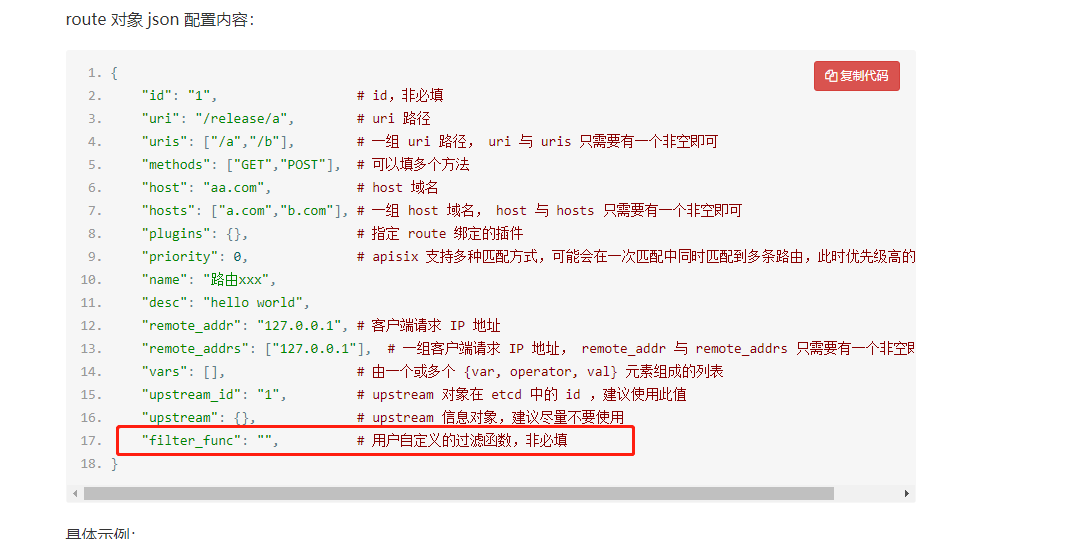

官方的文档比较少。

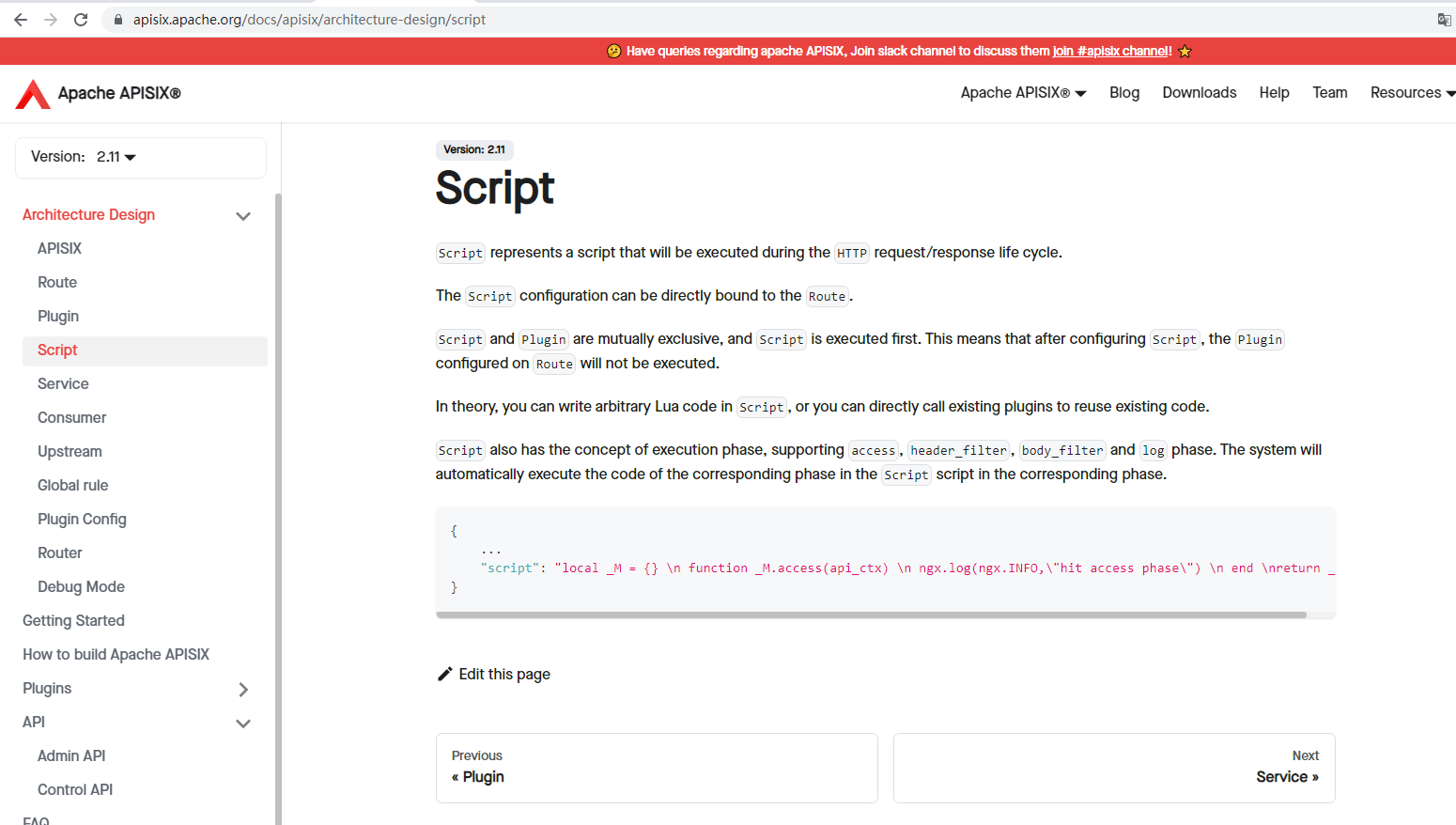

https://apisix.apache.org/docs/apisix/architecture-design/script
